We were given the job of installing a full multi point cage in the Jay Rockett S14 Shell.

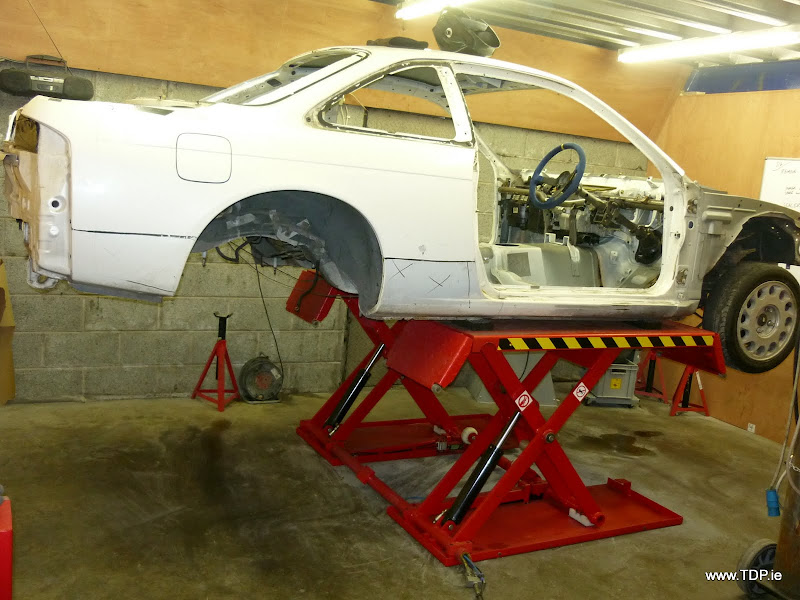

The S14 Shell in the New TDP Shell prep room.

Installing the rear subframe cross supports

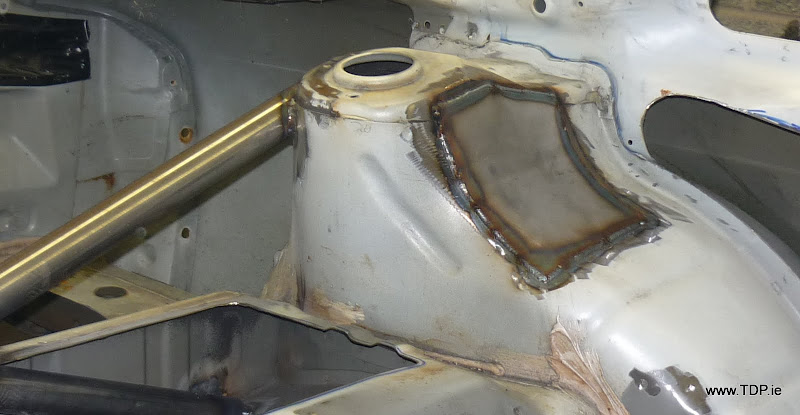

Pads for rear stays to spread the load and allow for proper welding to tubes.

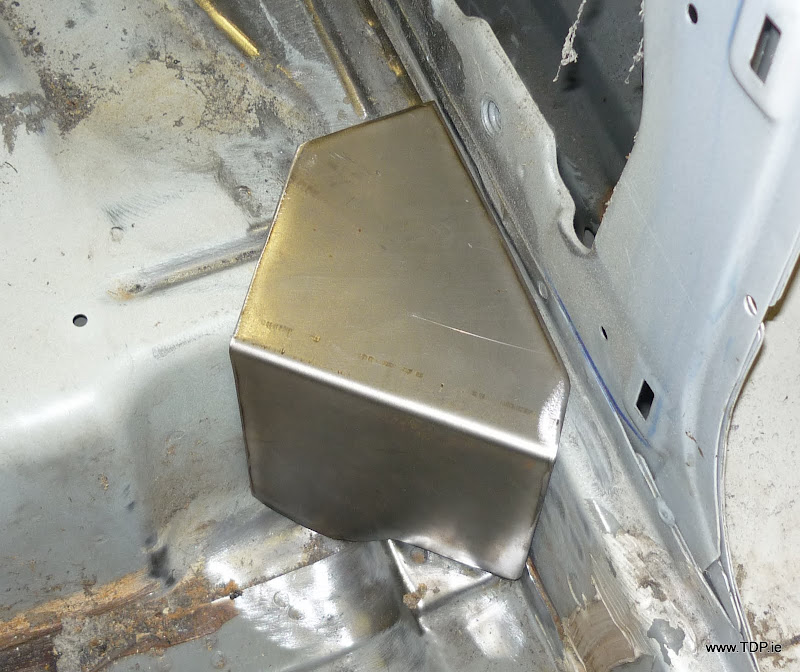

Fabricated supports for main hoop and front legs.

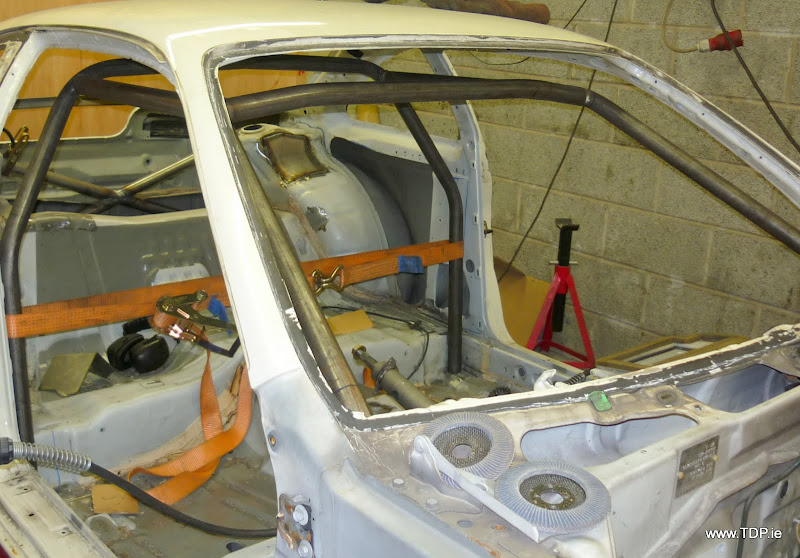

The main structure dropped down and forward to allow for welding all around the joints.

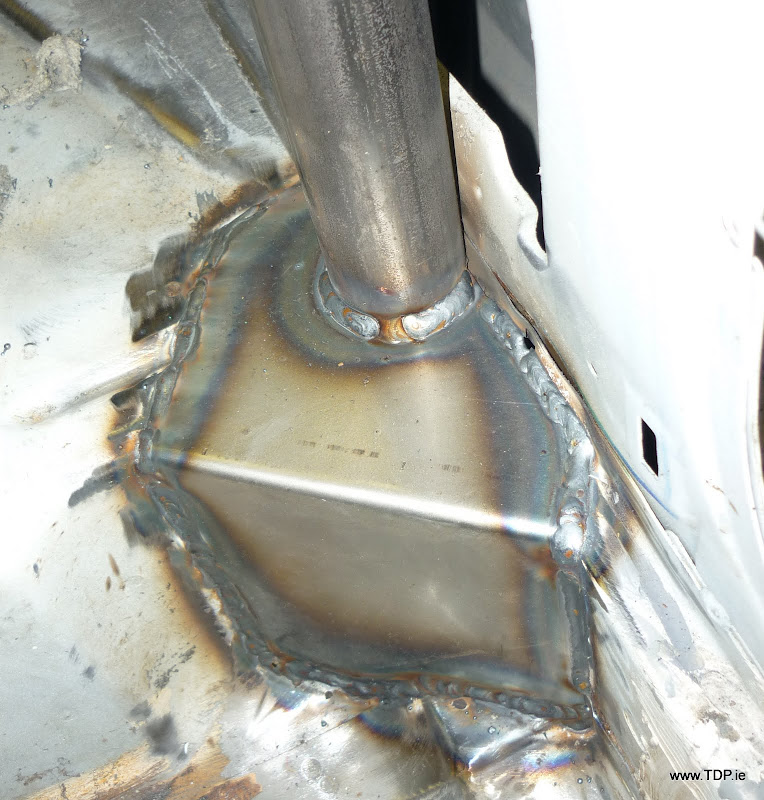

Example of weld quality.

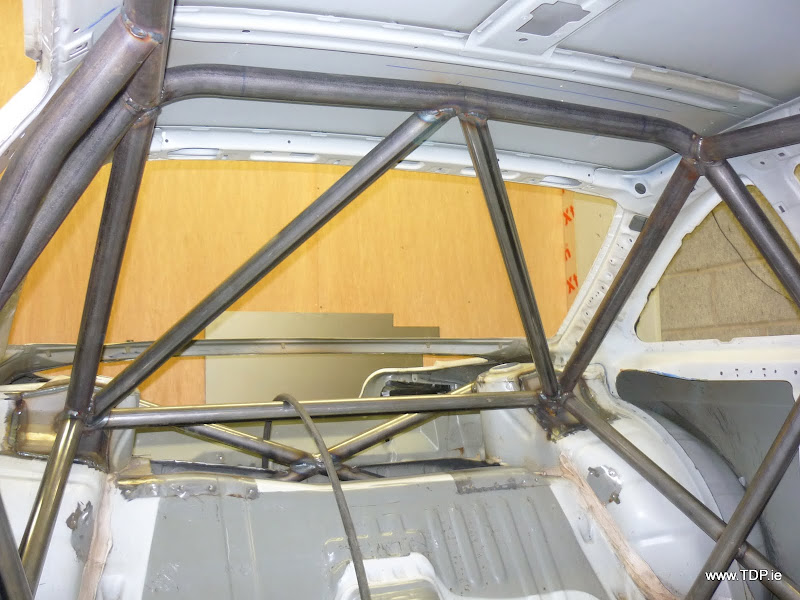

Parts of the rear cage taking shape.
77

The tube shaper in action.

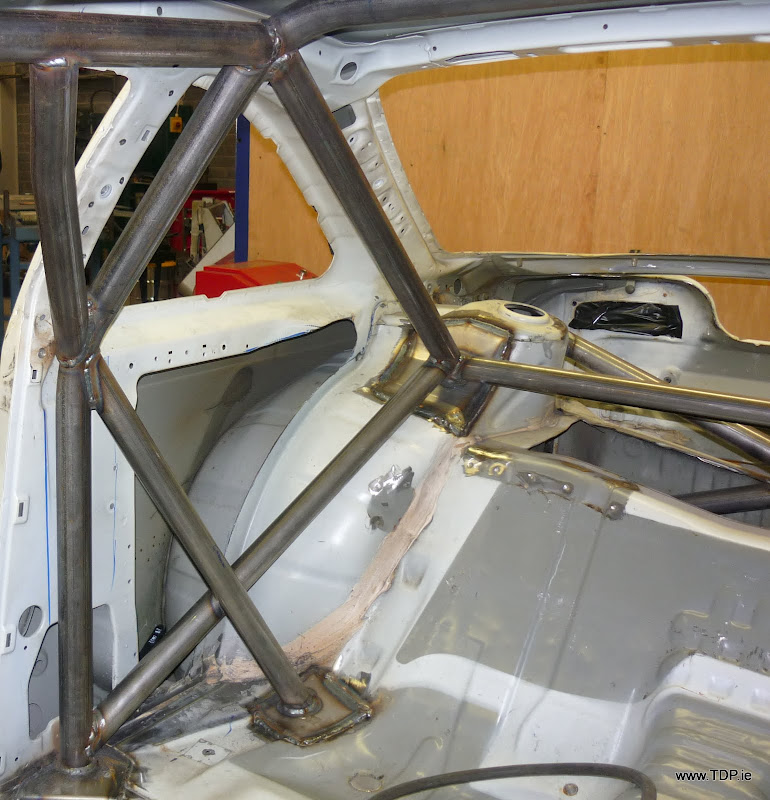

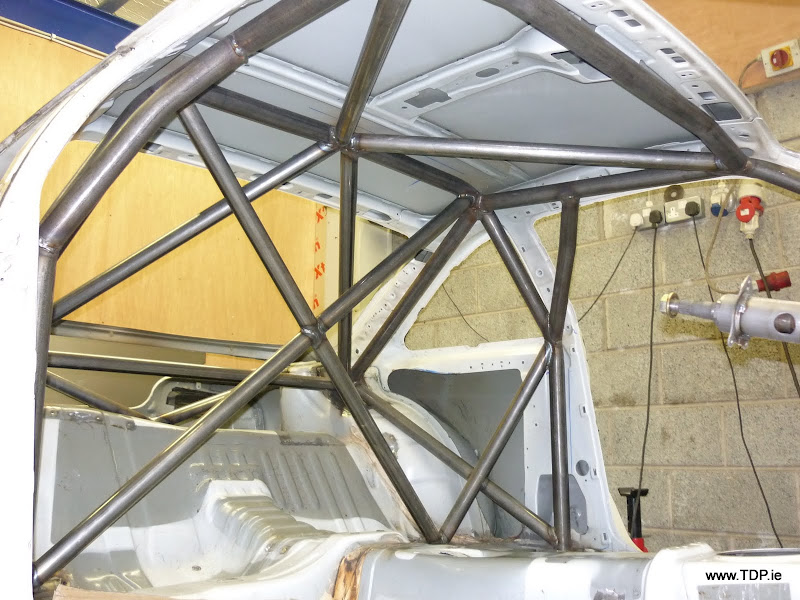

Full rear section and roof completed.

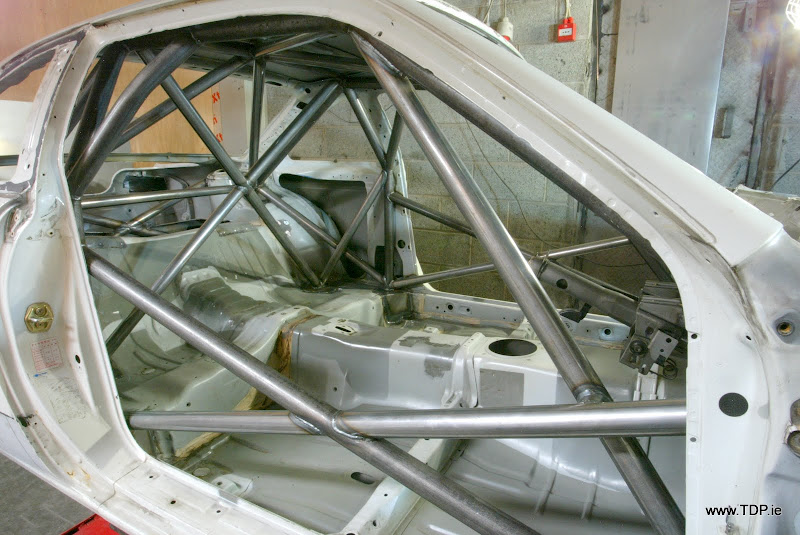

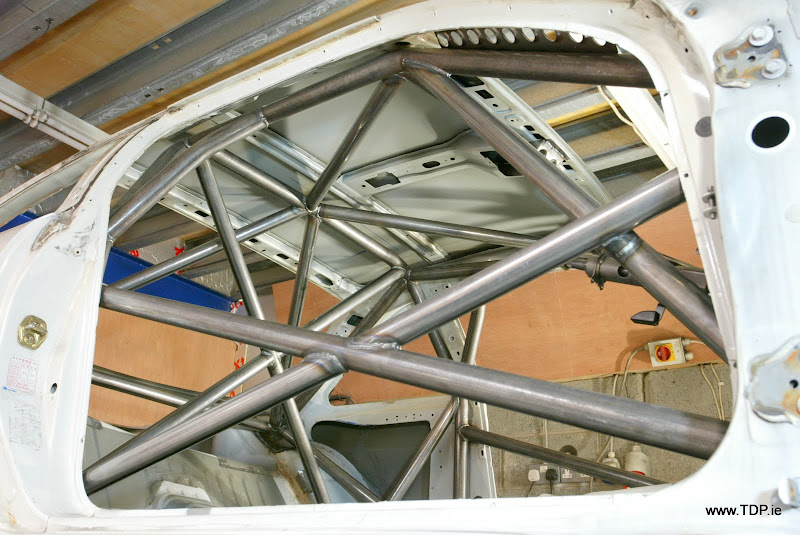

With full door bars and A pillar support bars installed.

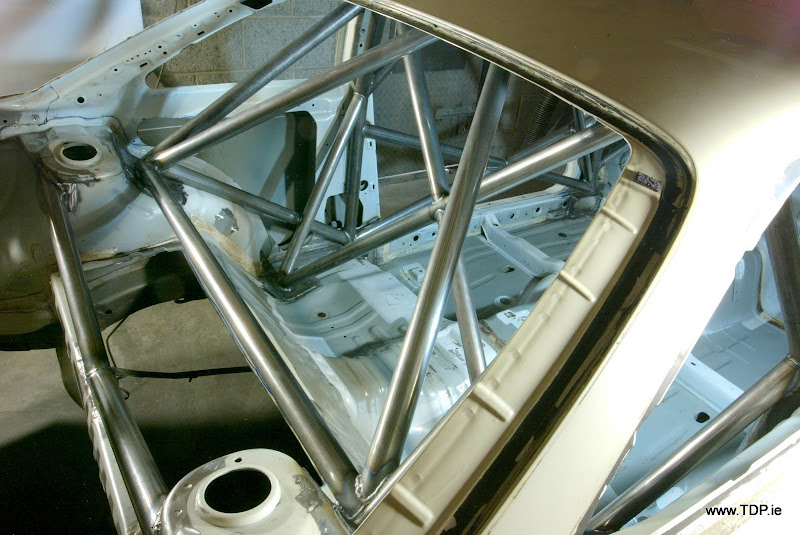

Maximum space inside the safety cell.
77

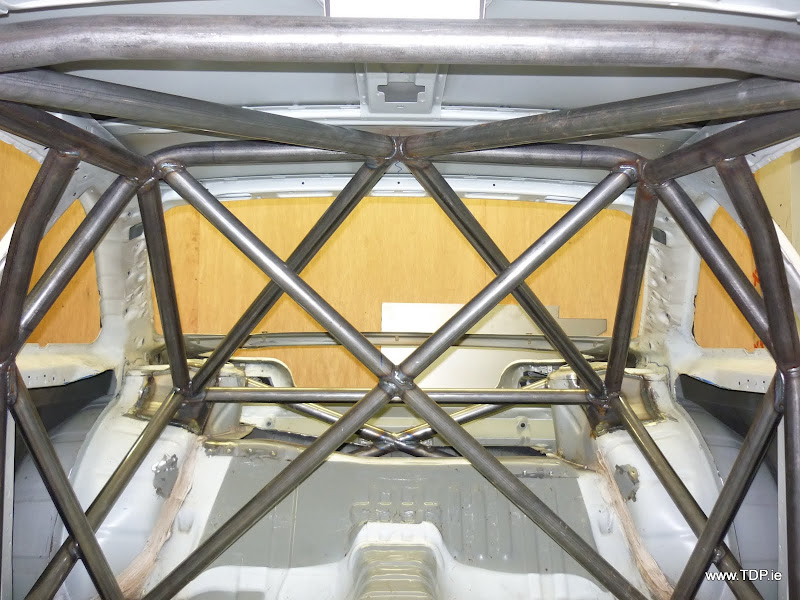

The rear triangulation will give maximum shell diagonal stiffness.

Finally front extensions to make the max use of the cage deign to suspension.

Ready for the customer and paint.
